कोकोआ फल विभाजक मशीन
| ब्रांड | तैज़ी |
| क्षमता | 300-800kg/h |
| Machine composition | Cocoa pod cutter, cocoa bean & pod separator |
| वोल्टेज | 380V/50Hz |
| मशीन सामग्री | Stainless steel & carbon steel |
अब आप तकनीकी विवरण के लिए हमारे परियोजना प्रबंधकों से पूछ सकते हैं

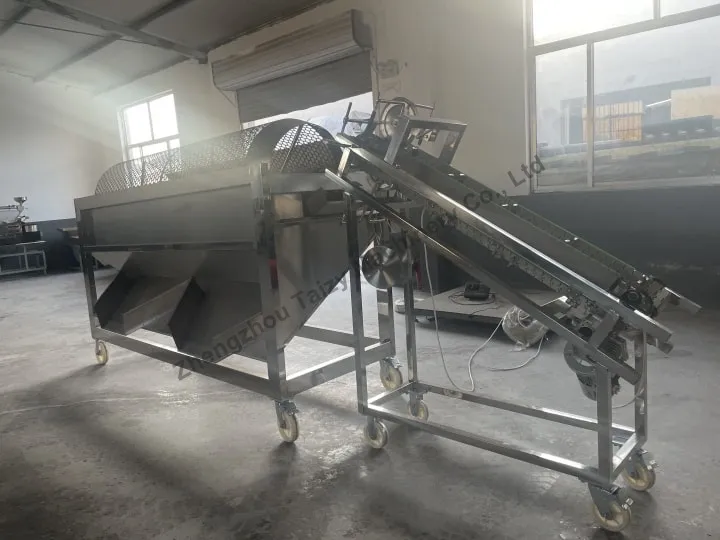

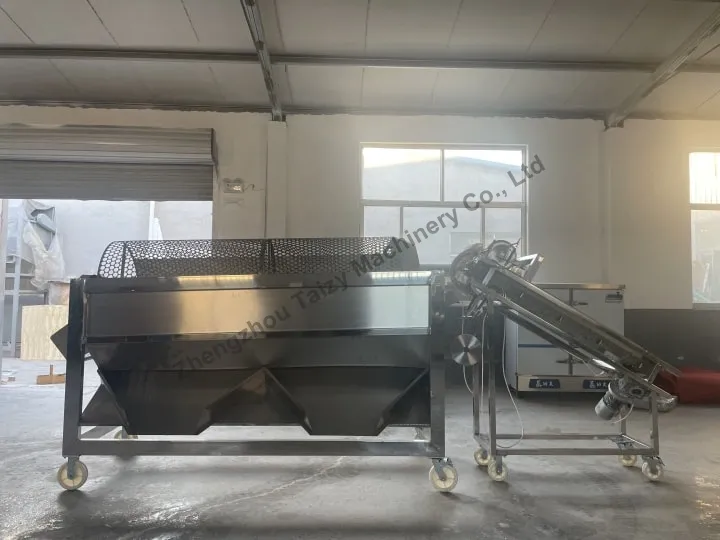

The cocoa pod splitting machine consists of a cocoa pod cutting machine and a cocoa bean & pod separation machine. It can cut open whole cocoa pods and automatically separate the cocoa beans from the cocoa pods.
Our cocoa pod splitter machine has a production capacity of 300-800 kg/h, suitable for cocoa processing plants of various sizes. The equipment operates stably, provides precise pod splitting, and has a low bean loss rate, significantly improving cocoa bean processing efficiency.
Advantages of cocoa pod opening machine
- Precise pod opening, resulting in a low rate of cocoa bean damage.
- Dual function of cutting and separating, minimizing manual intervention.
- High processing efficiency and stable output (300-800 kg/h).
- Roller screening structure for excellent separation results.
- Parts in contact with cocoa beans are made of stainless steel, ensuring safety and hygiene.
- The cocoa pod splitting machine has a mature structure and stable operation.
- Simple operation, requiring only one worker.
- Strong adaptability, capable of processing cocoa pods of different sizes.
What can cocoa pod splitting machine be used for?
- Cocoa bean primary processing plant
- On-site processing at cocoa plantations
- Pre-export processing of cocoa beans
- Pre-fermentation and drying processes for cocoa
The processed cocoa beans can also be directly used in subsequent processing, such as in the cocoa butter production line, providing high-quality raw materials for the entire production line.
Structure and work principle
Structure:
Our cocoa pod splitting machine mainly consists of two parts:

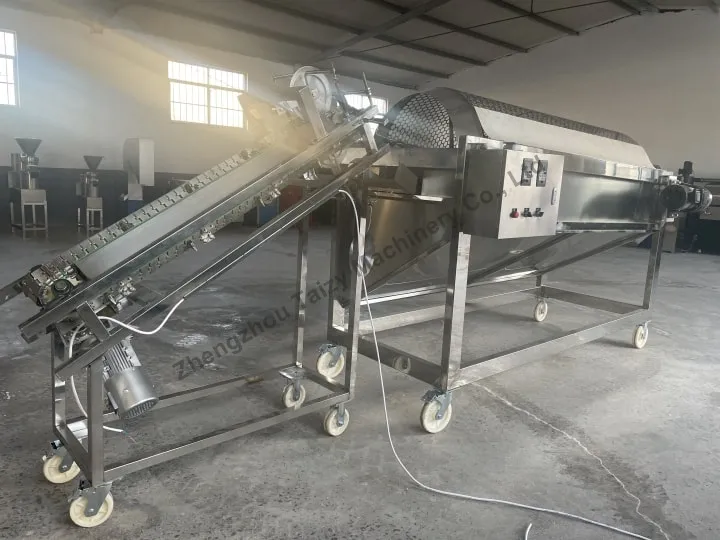

- Cocoa pod cutting machine

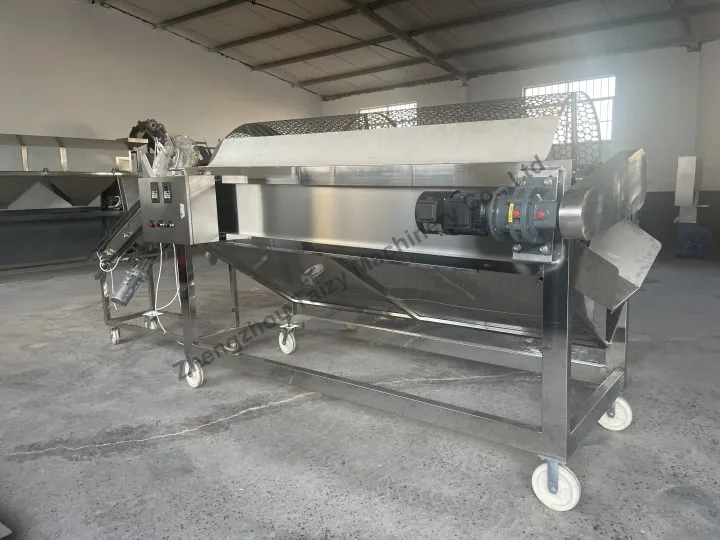

- Cocoa bean and pod separation machine
Work principle:
- खिलााना
- The cocoa pods are manually arranged evenly and positioned, and fed into the cutting area using fruit clamps.
- Cocoa pod cutting
- The cocoa pod cutting machine cuts the cocoa pods, acting only on the outer shell without damaging the cocoa beans.
- Pod and bean separation
- The mixture enters a cocoa bean & pod separator machine. Automatic separation is achieved using a rotating drum screening structure.
- डिस्चार्ज
- The separated cocoa beans and pods are discharged from different outlets.
Available models and parameters
The cocoa pod splitting machine is available in two configurations, small and large, depending on production capacity and processing requirements. The detailed specifications are as follows:
Small:
| मशीन का नाम | विशेष विवरण |
| Cocoa cutter machine | Production capacity: Approximately 300-400kg/h पावर: 0.75कडब्ल्यू वोल्टेज: 380V/50Hz Dimensions: 1.6*0.6*1.6 m Material: 201 stainless(steel belt), carbon steel(frame, and transmission parts) वजन: 150kg |
| Cocoa bean and pod separator | Production capacity: Approximately 300-400kg/h पावर: 1.1kw वोल्टेज: 380V/50Hz Dimensions: 2*1.3*1.7 m Materials: Drum and hopper in contact with food are made of 201 stainless steel, transmission parts and frame are made of carbon steel Weight: 180kg |
Large:
| मशीन का नाम | विशेष विवरण |
| Cocoa cutter machine | Production capacity: Approximately 800kg/h पावर: 0.75कडब्ल्यू वोल्टेज: 380V/50Hz Dimensions: 1.6*0.6*2 m सामग्री: कार्बन स्टील Weight: 160kg |
| Cocoa bean and pod separator | Production capacity: Approximately 1000kg/h पावर: 1.1kw वोल्टेज: 380V/50Hz Dimensions: 2.8 * 1.1 * 2.2 m Materials: Food-contact parts made of stainless steel, frame and transmission parts made of carbon steel Weight: 380kg |
How to choose right cocoa pod splitter capacity?
300–400 kg/h: Suitable for small processing plants, on-site processing at plantations, or initial projects.
800–1000 kg/h: Suitable for medium to large-scale cocoa processing plants.
FAQ of cocoa pod breaker machine
Can cocoa beans be damaged during the pod cutting process?
No. The cutting process primarily affects the outer shell of the pod, resulting in minimal impact on the cocoa beans and a low rate of damage.
Can the cocoa pod splitting machine process cocoa pods of different sizes?
Yes. The equipment is suitable for common, mature cocoa pods and has good adaptability.
What is the production capacity of the cocoa pod opening machine?
Approximately 300-800kg/h.
How many people are needed to operate the machine?
1-2 people.
Can the equipment be customized?
It can be customized, such as voltage, material, etc.
